Lab 6 — Preventing Data Exfiltration Using Inline Web DLP

Lab 6⏱ 25 min⚗ Lab Tenant · Read/Write👤 Alex + Kevin

Preventing Data Exfiltration Using Inline Web DLP

In Lab 5, Alex built a custom DLP detection engine capable of identifying sensitive payroll data. Now it is time to put that engine to work. In this lab, Alex configures an Inline Web DLP policy that blocks unauthorized uploads in real time — and Kevin attempts to upload the Dataparity payroll report to ChatGPT for AI analysis, only to be stopped by Inline Web DLP.

🔗Dependency: This lab requires the Unified DLP Engine created in Lab 5 (DP Project Code). Complete Lab 5 before proceeding.

Scenario Overview

This lab demonstrates the complete Inline Web DLP workflow end-to-end:

Step	What Happens
1	Alex creates a custom End User Notification (EUN)
2	Alex builds an Inline Web DLP policy using the Lab 5 engine
3	Kevin attempts to upload Dataparity_Q2_2025_Workforce_Financial_Summary.docx to ChatGPT
4	Inline DLP inspects, detects, and blocks the upload in real time
5	Kevin receives the custom EUN explaining the denial
6	Alex reviews the violation in Web Insight Logs

Use the supplied payroll report to test the Lab 5 engine. DP Project Code requires all three dictionaries to match: Credit Cards AND ABA Bank Routing Number AND the custom DP Project Code dictionary, each with a count greater than zero. Payroll data or SSNs alone do not satisfy this engine.

---

Task 1 — Admin Experience: Configure Inline DLP Protection

🛡

Alex — Security Administrator

Lab Tenant (Read/Write) — Configuration Mode

You are Alex. Before a policy can block exfiltration, users need to understand why their action was denied. You will first create a custom End User Notification, then build the Inline Web DLP policy that references it.

🎯Configure a custom EUN and an Inline Web DLP policy that uses the Lab 5 detection engine to block sensitive uploads.

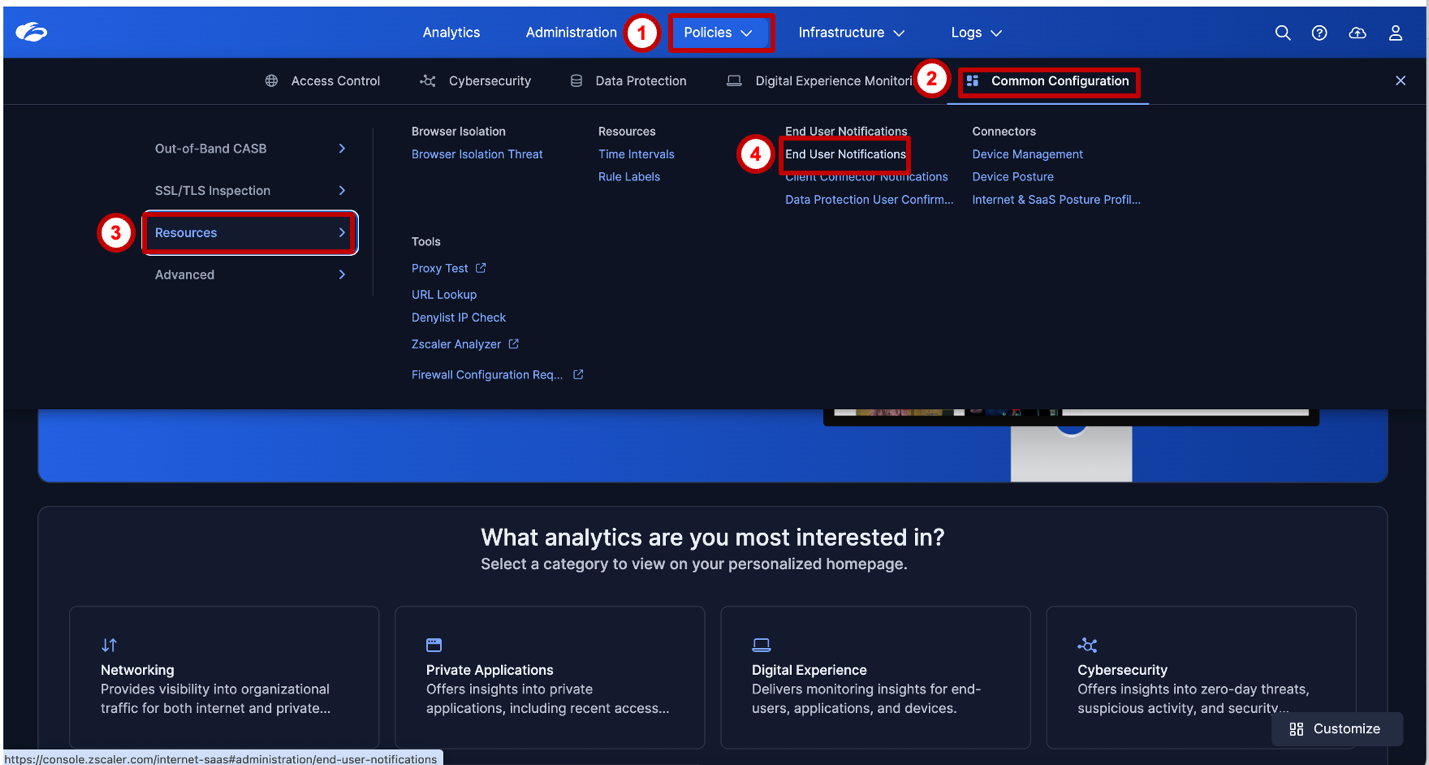

Step 1 — Navigate to End User Notification (EUN)

Alex creates a custom End User Notification to explain why uploads containing sensitive corporate data are blocked. Clear user coaching reduces helpdesk escalations and reinforces security awareness.

Navigate to:

Policies → Common Configuration → Resources → End User Notification

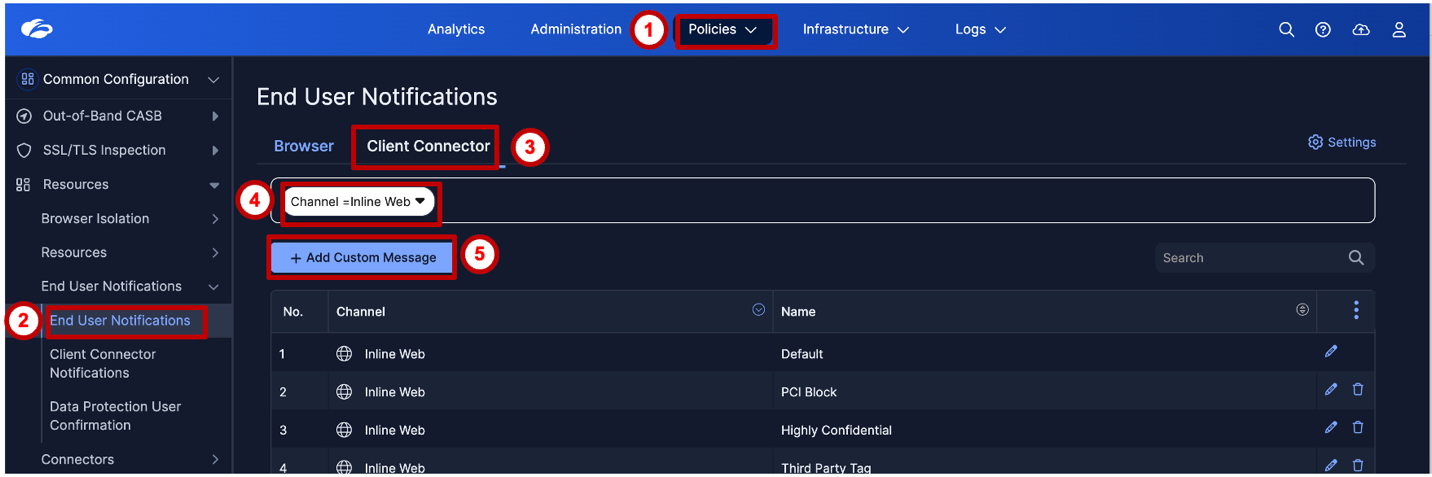

Step 2 — Add a Custom EUN

Navigate to the Client Connector tab and click Add Custom Message. Select channel Inline Web.

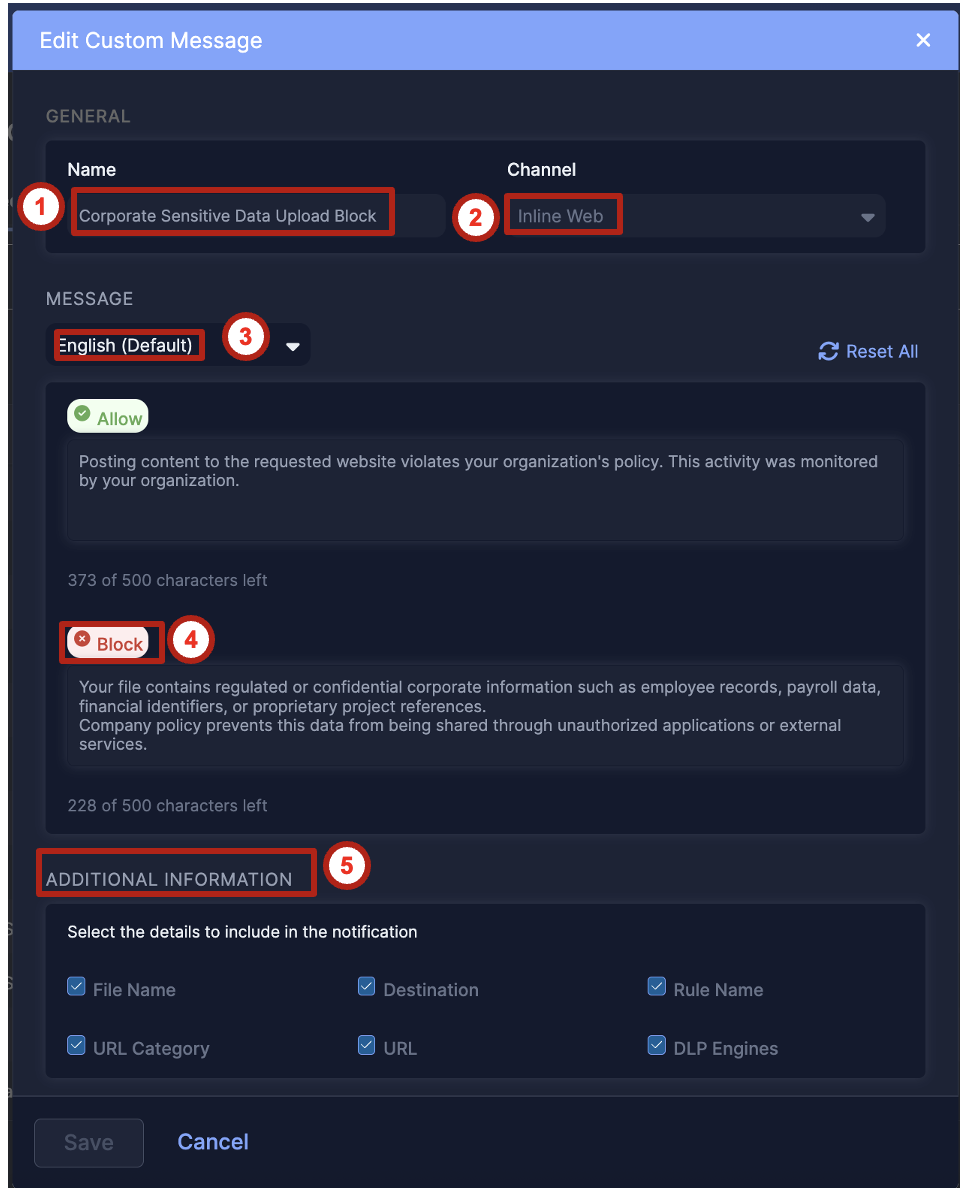

Step 3 — Add the Custom Message Text

Enter the message that will be displayed to end users when a policy violation occurs. The message should identify the policy, explain the reason for the block, and provide a contact path.

📝 Suggested message: "Your file upload has been blocked because it contains sensitive Dataparity information protected under our Data Security Policy. If you believe this is an error, please contact the Security team at security@dataparity.com."

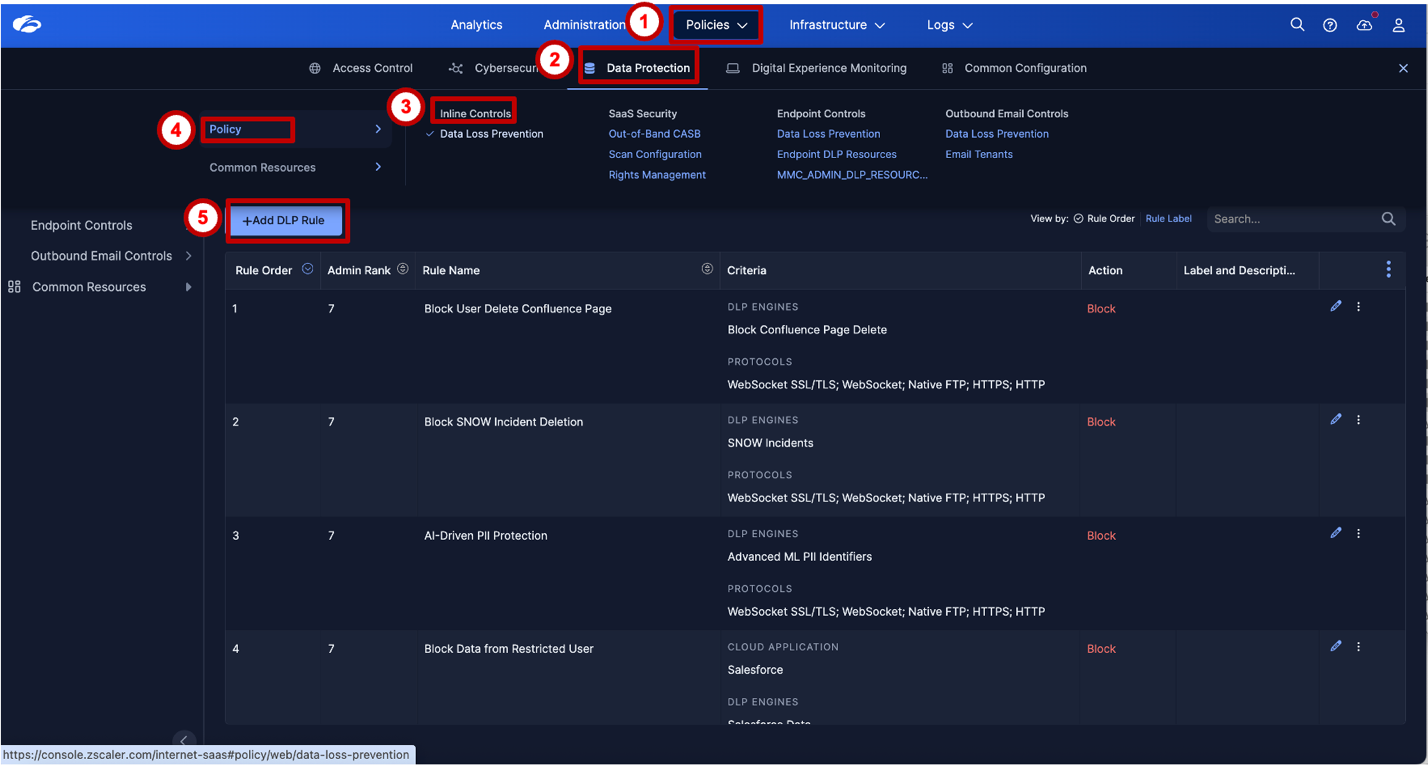

Step 4 — Navigate to Inline DLP Policy Creation

Navigate to the Inline DLP policy creation page:

Policies → Data Protection → Inline Protection → Data Loss Prevention → Add

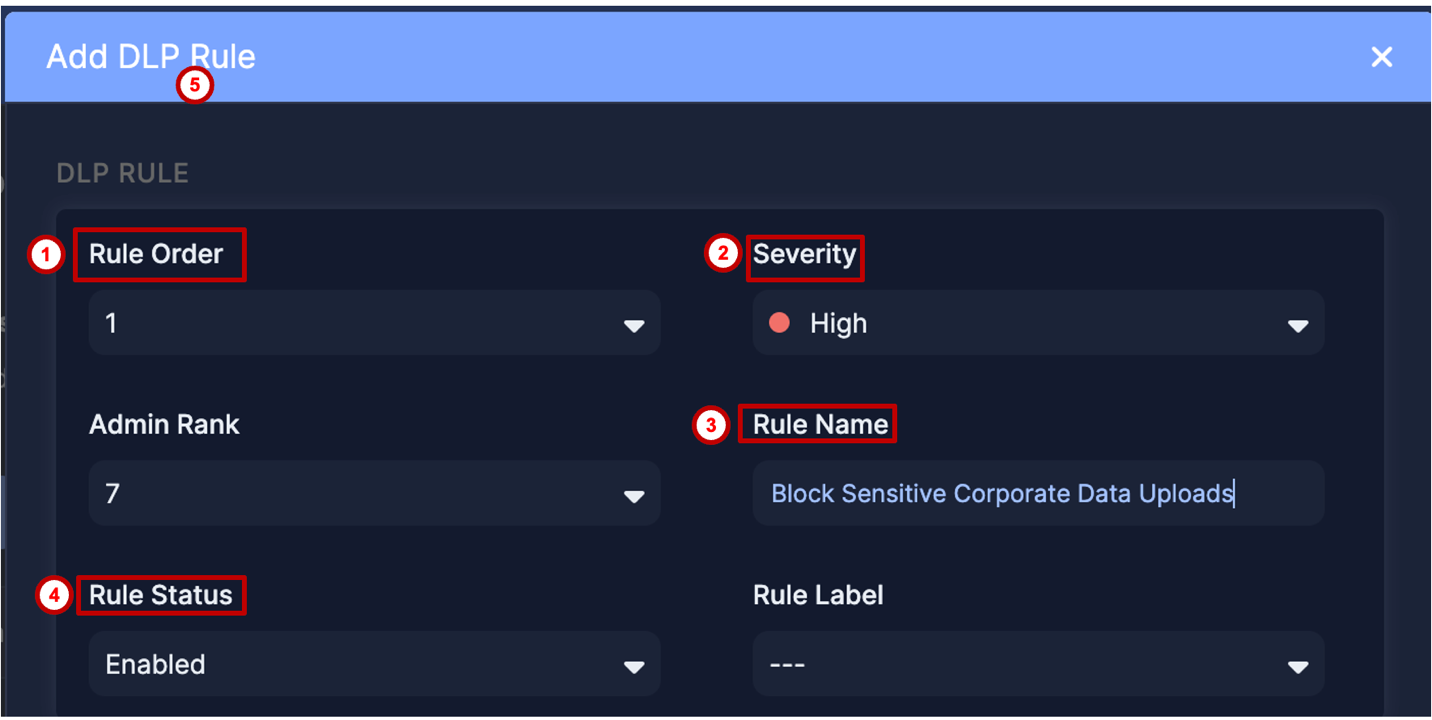

Step 5 — Configure Basic Policy Information

The policy window is large and split across multiple sections. The first section covers the foundational policy settings:

• Policy Name: Block Sensitive Corporate Data Uploads
• Rule Order: Set appropriately for your policy stack
• User Scope: All users (or scoped to the Dataparity employee group)
• Destination / Application Scope: Any destination for this lab (this includes sanctioned and unsanctioned destinations)

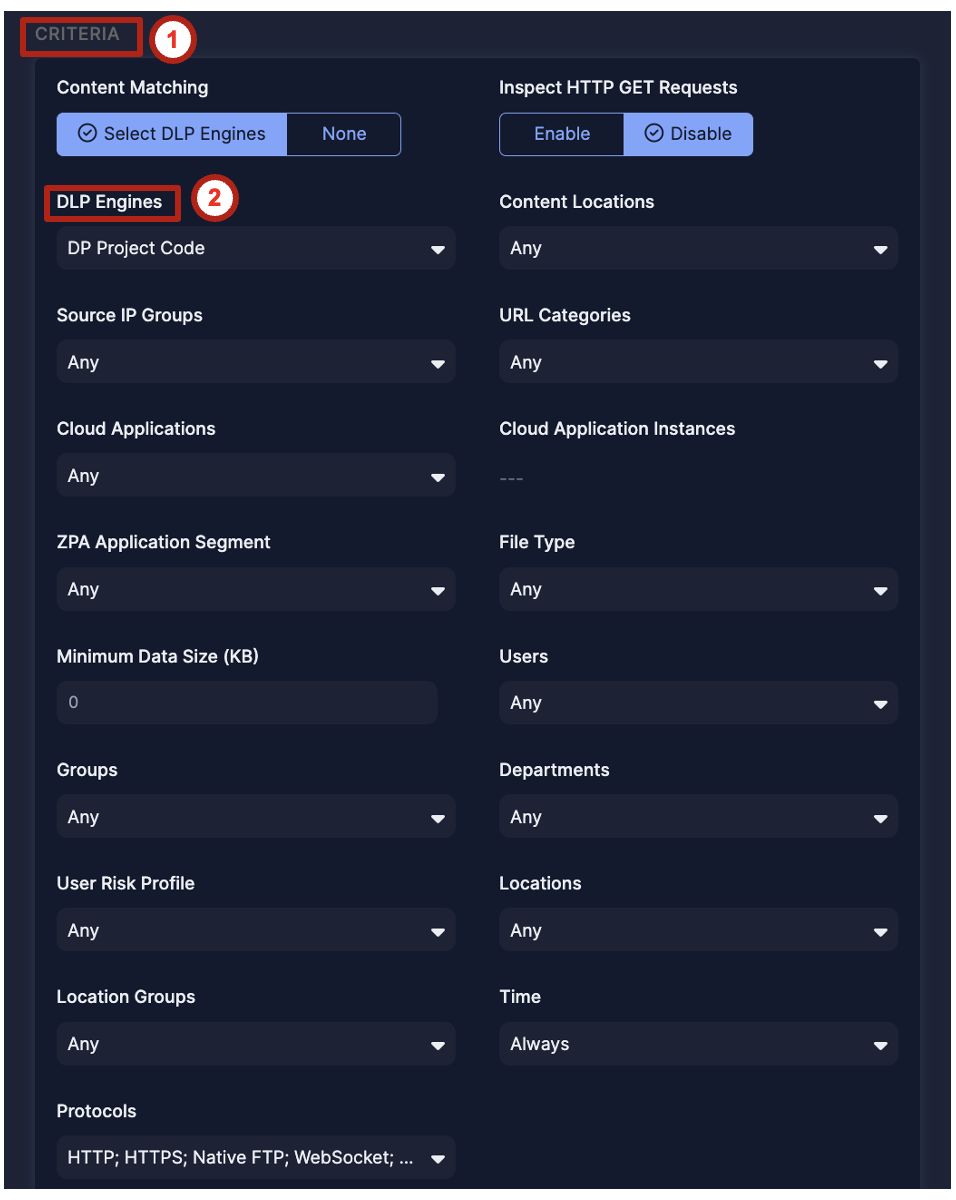

Step 6 — Configure Policy Criteria

In the Criteria section, select the Unified DLP Engine created in Lab 5 — DP Project Code.

This is the key connection point: the detection logic built in Lab 5 is now referenced by an enforcement policy. Lab 7 reuses this engine for Endpoint DLP; Lab 8 uses separate, preconfigured browser policies.

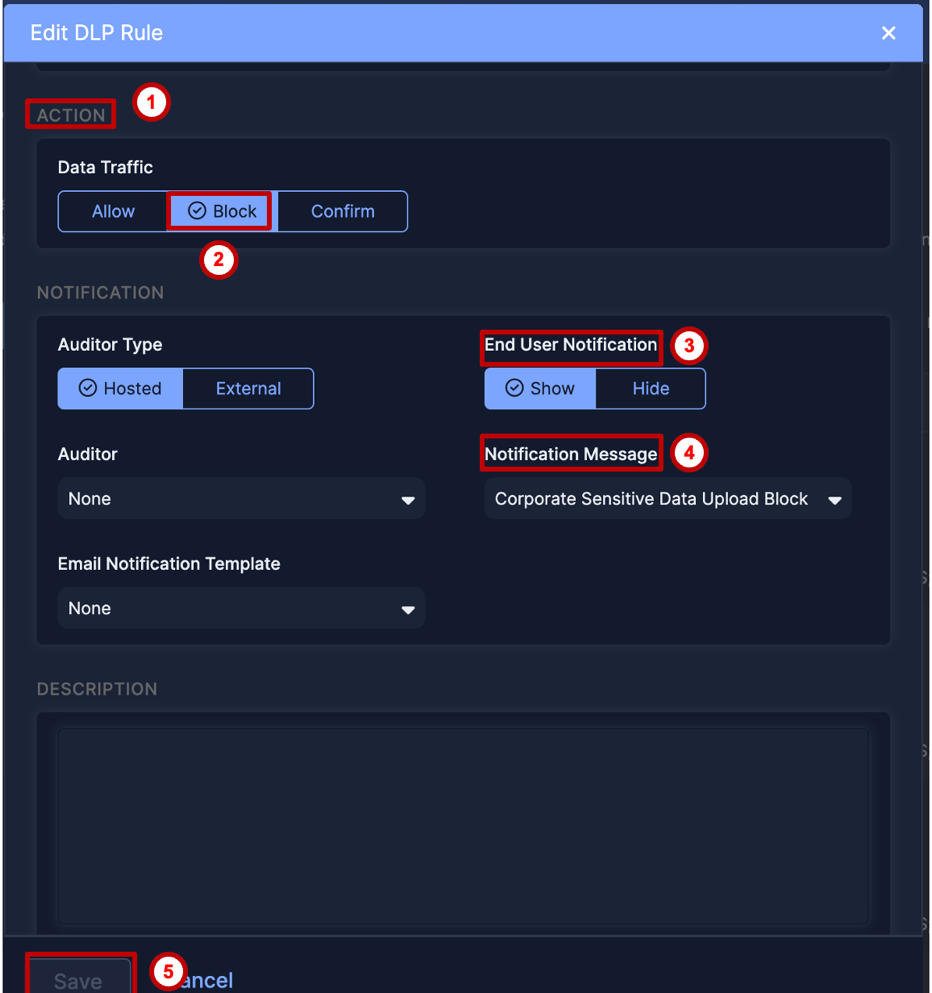

Step 7 — Configure Policy Action

In the Action section:

• Set Action = Block
• Select the End User Notification created in Steps 1–3

This completes the Detection → Enforcement → User Coaching → Logging chain.

💡 Key Insight

Detection → Enforcement → User Coaching → Logging. This four-step chain is the hallmark of a mature DLP deployment. Detection identifies the risk. Enforcement stops the action. User coaching reduces recurrence. Logging creates an audit trail for investigation.

Most organizations start with detection and logging only (alert mode). The shift to Block + EUN is when DLP moves from visibility to active protection.

---

Task 2 — User Experience: Prevent Data Exfiltration

👤

Kevin — End User

Lab Tenant — VM Session

You are Kevin. You have a Word (DOCX) copy of the Dataparity payroll report on your desktop. You will attempt to upload it to ChatGPT or one of the alternative destinations below to test the Inline Web DLP policy.

🎯Attempt to upload the payroll report to an unsanctioned website and observe the real-time block and user notification.

VM Required

This task must be performed from the lab VM machine. Complete Pre-Requisites for Module 2, Parts 1–3: verify Inspect for the lab's HTTPS traffic in Part 2, Step 5; confirm ZCC is authenticated with its service ON and all modules active; and verify traffic steering at ip.zscaler.com.

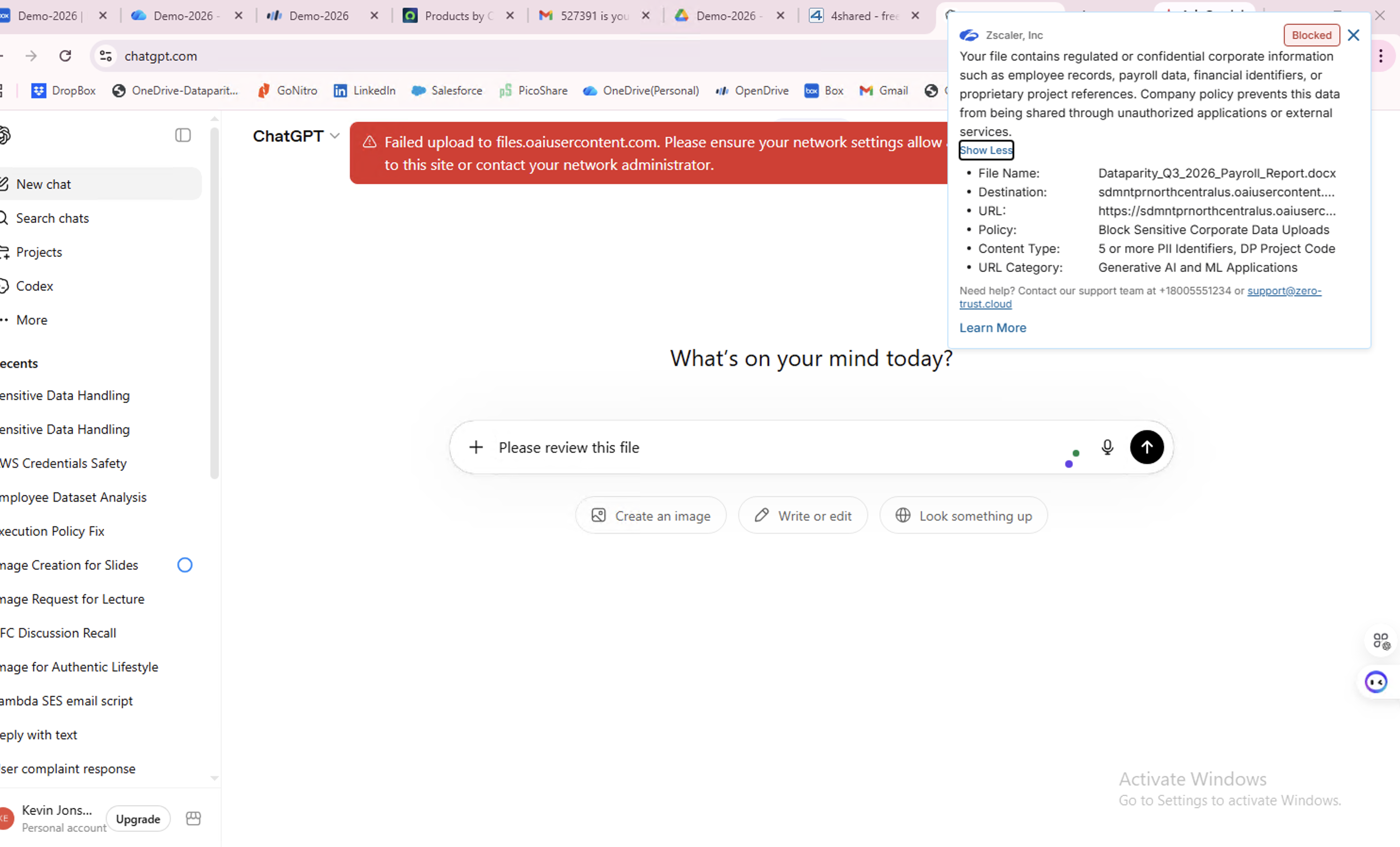

Step 8 — Attempt the Upload

Kevin opens a browser on the lab VM and navigates to https://chatgpt.com — a GenAI platform — to get an AI-powered analysis of the sensitive data.

note

No ChatGPT account? If a login is required and you cannot or prefer not to sign in, try one of these alternatives, subject to its current account and upload requirements:

• 4shared — https://www.4shared.com
• WeTransfer — https://wetransfer.com
• Box (personal/free) — https://www.box.com

Upload flows and notifications can vary by application. Verify that your chosen destination is covered by the policy and SSL inspection, then confirm the DLP block in your own Web Insights event.

He selects Dataparity_Q2_2025_Workforce_Financial_Summary.docx from the desktop and initiates an upload.

Expected result when the upload is inspected and matches the policy:

1. The lab VM's upload traffic is steered through Zscaler with SSL inspection
2. Inline DLP inspects the file content
3. The DP Project Code engine matches all three dictionary conditions
4. The policy blocks the upload; verify the notification and corresponding Web Insights event

Step 9 — Kevin Receives the Block Notification

Instead of a successful upload confirmation, Kevin sees the custom End User Notification Alex configured in Task 1.

---

Task 3 — Admin Experience: Review Web Insight Log

🛡

Alex — Security Administrator

Lab Tenant — Log Review

You are Alex. Kevin's upload attempt was blocked. Now you need to verify the event was captured, confirm the correct policy fired, and review the violation metadata — the starting point for any DLP incident investigation.

🎯Validate that the DLP event was correctly logged in Web Insight with full metadata.

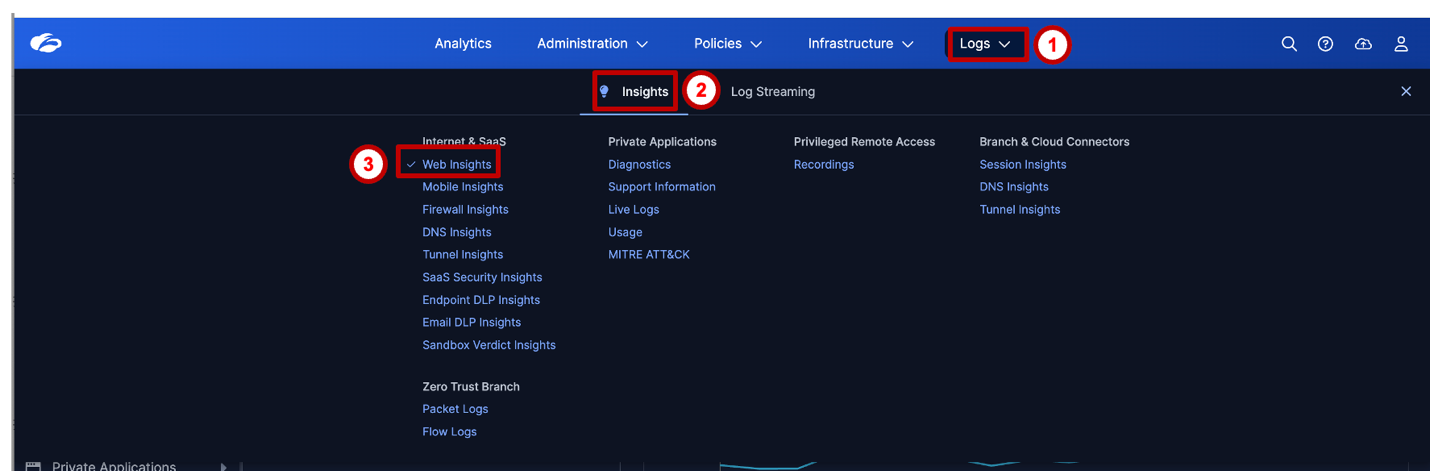

Step 10 — Navigate to Web Insight Logs

Navigate to the Web Insight log viewer:

Logs → Insights → Web Insights

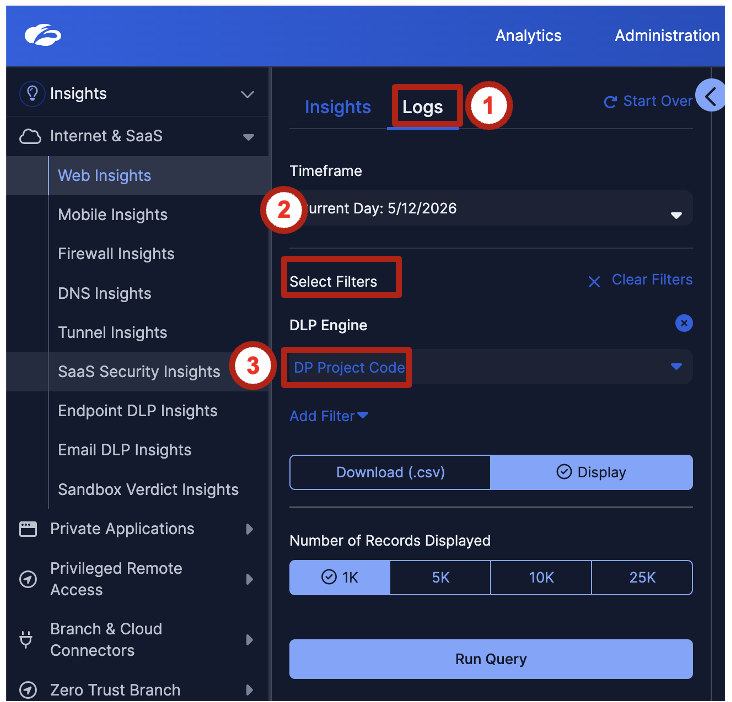

Step 11 — Apply DLP Engine Filter

Apply a filter to isolate DLP-triggered events:

Filter: DLP Engine = DP Project Code

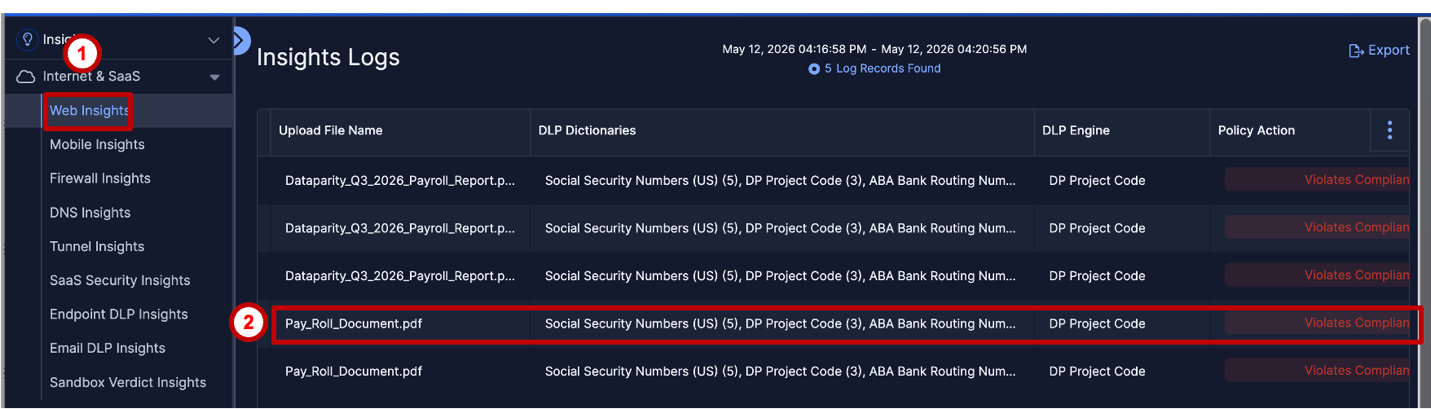

Step 12 — Review Violation Metadata

Locate your upload attempt using its time, signed-in lab identity, and chosen destination. Kevin is the scenario persona; your event should show the actual test identity. Expand the matching event to review the violation record:

The values below are examples, not a required literal match to the screenshot. Verify your actual identity, VM/IP, chosen destination, rule, engine, file, and action. Display labels and screenshot values can vary.

Field	Example / What to Verify
User Identity	Your signed-in lab identity (playing Kevin)
Source Device / IP	Your lab VM / source IP
Cloud Application	ChatGPT, or your chosen upload application
Policy Triggered	Your rule: Block Sensitive Corporate Data Uploads
DLP Engine Matched	Your Lab 5 engine: DP Project Code
File Name	Your test file: Dataparity_Q2_2025_Workforce_Financial_Summary.docx
File Type	Microsoft Word / DOCX (display label may vary)
URL Category	For example, Generative AI and ML Applications for ChatGPT; verify your destination's category
Action Taken	Verify Blocked for this test

Trigger Data Not Shown

This step focuses on event metadata rather than matched content. Lab 9: ZWA SOC Triage switches to the read-only Enterprise Tenant, where Priya reviews prepopulated incidents and their trigger data. Those are separate incidents, not the Lab Tenant event you generated here.

💬 Discussion

• The policy used Block. When would Alert-only be a better starting posture for a new DLP rule — and what metrics would you use to decide when to escalate to Block?
• Kevin uploaded to ChatGPT — a GenAI tool. How would the policy behave if he attempted the same upload to a sanctioned AI platform like Microsoft Copilot?
• The Web Insight log shows metadata but not trigger content at this stage. Why might you want to limit trigger visibility in the primary log view?
• The Lab 5 DLP engine is shared by Labs 6 and 7. What governance process would you use to control who can modify a shared detection engine?

💡 Key Insight — Lab 6

GenAI uploads can expose sensitive corporate data. This lab uses the Lab 5 engine to block inspected uploads that match the configured Inline Web DLP policy. Confirm the result through the user notification and your own Web Insights event.

Lab 7 reuses the engine for Endpoint DLP Application File Access (AFA) and Clipboard controls. Lab 8 tests separate, preconfigured browser policies for copy-paste controls; it does not reuse this engine.
